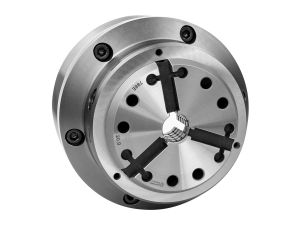

Type KSKF power-operated collet chucks

The innovative collet chucks feature short changeover times from external to internal clamping and high degrees of precision and rigidity.

for workpiece clamping of bar and chucking works
highest clamping forces and rigidity (types KSKF, KSKF-A)
axially fixed clamping head, less rigidity (type KSKF-AF)
quick change capability of clamping heads

PDF Download

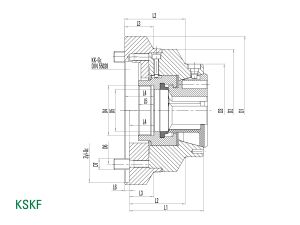

Drawback collet chuck with through-hole (type KSKF) for bar machining: the clamping head is pulled into the chuck during clamping and provides high clamping forces and high rigidity. The collet chucks work very precisely and feature an easy set-up as well as high running accuracy.

with cylindrical adapter flange, drawback collet chuck with through-hole

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF 42 Z140	42	140	150	132	100	M54 x 1,5	45	104,8	M10 (3x120°)	75	55	15	21,5	17	6	7000
KSKF 65 Z140	65	140	157		122	M78 x 1,5	68,5	108,5	M10 (3x120°)	100	70		39	17,5	5	6000
KSKF 65 Z170	65	170	180	157	122	M78 x 1,5	69	133,4	M12 (6x60°)	98	68	13	37	17,5	5	6000
KSKF 100 Z170	100	170	215		180	M95 x 2,0	87	133,4	M12 (6x60°)	110	89		31	25,0	6	5000
KSKF 100 Z220	100	220	230	215	180	M95 x 2,0	87	171,4	M16 (6x60°)	110	89	31,5	31	25,0	6	5000
*unbalanced

with short taper holder, drawback collet chuck with through-hole

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF 42/5	42	A2-5	132		100	M54 x 1,5	45	104,8	M10 (4x90°)	90	70		36,5	17	16,5	7000
KSKF42/6	42	A2-6	160	132	100	M54 x 1,5	45,0	133,4	M12 (4x90°)	90	70	36	37	17,0	17,5	7000
KSKF 65/5	65	A2-5	157		122	M78 x 1,5	69	104,8	M10 (4x90°)	100	70		39	17,5	19	6000
KSKF 65/6	65	A2-6	157		122	M78 x 1,5	69	133,4	M12 (4x90°)	98	68		37	17,5	17,5	6000
KSKF 65/8	65	A2-8	202	157	122	M78 x 1,5	69	171,4	M16 (/4x90°)	102	72	47	41	17,5	20	6000
*unbalanced

Same as type KSKF, but with an additional stop for chuck parts which can be screwed on: the clamping head offers high clamping forces and high rigidity as well. Due to the axial pulling effect, the workpiece is pulled against the stop and provides an additional workpiece support. Therefore, the type KSKF-A is perfect with short clamped workpieces.

with cylindrical adapter flange, drawback collet chuck with rigid axial stop

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-A 42 Z140	42	140	150	132	100	M54 x 1,5	46	104,8	M10 (3x120°)	90	53	15	21,5	17	6	7000
KSKF-A 65 Z140	65	140	157		122	M78 x 1,5	68	104,8	M10 (3x120°)	112	69		39,0	17,5	5	6000
KSKF-A 65 Z170	65	170	180	157	122	M78 x 1,5	68	133,4	M12 (6x60°)	110	67	13	37,0	17,5	5	6000
KSKF-A 80 Z140	80	140	185	175	140	M78 x 1,5	74	104,8	M10 (3x120°)	130	87	43	39,0	17,5	5	5500
KSFKF-A 80 Z220	80	220	230	175	140	M94 x 1,5	85	171,4	M16 (6x60°)	119	76	32	30,5	17,5	6	5500
KSKF-A 100 Z170	100	170	215		180	M95 x 2,0	87	133,4	M12 (6x60°)	159	138		31,0	25,0	6	3800
KSKF-A 100 Z220	100	220	230	215	180	M115 x 2,0	107	171,4	M16 (6x60°)	159	138	31	31,0	25,0	6	3800
*unbalanced

with short taper holder, drawback collet chuck with rigid axial stop

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-A 65-A8	65	A2-8	202	157	122	M78 x 1,5	68	171,4	M16 (4x90°)	114	71	47	41,0	17,5	20	6000
KSKF-A 80-A6	80	A2-6	185	175	140	M94 x 1,5	85	133,4	M12 (4x90°)	125	82	38	36,5	17,5	17,5	5500
KSKF-A 80-A8	80	A2-8	202	175	140	M94 x 1,5	85	171,4	M16 (6x60°)	130	87	43	41,5	17,5	20	5500
*unbalanced

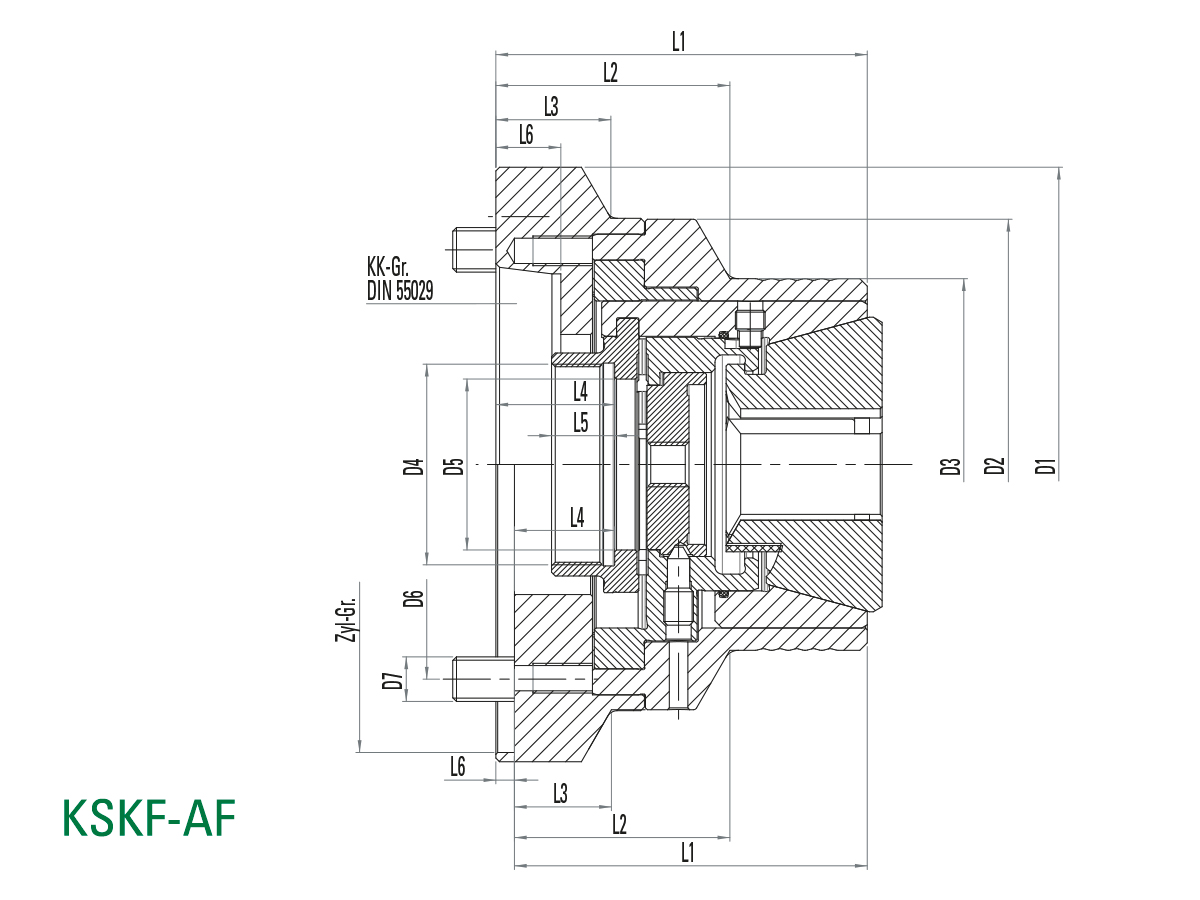

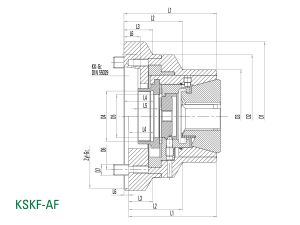

Type KSKF-AF is equipped with a fixed clamping head and can be used for through as well as for stop clamping. The pressure sleeve is pushed over the axially fixed clamping head. Type KSKF-AF offers a lesser stiffness than that achieved with types KSKF and KSKF-A.

with cylindrical adapter flange, fixed clamping head

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-AF 32 Z120	32	120	130	100	75,5	M40 x 1,5	33	102	M8 (6x60°)	83	49	15	17,0	15	6	8000
KSKF-AF 42 Z140	42	140	150	132	100	M54 x 1,5	46	104,8	M10 (3x120°)	90	53	15	22,0	17,0	6	7000
KSKF-AF65 Z140	65	140	157		122	M78 x 1,5	68	104,8	M10 (3x120°)	112	69		39,5	17,5	5	6000
KSKF-AF 65 Z170	65	170	180	157	122	M78 x 1,5	68	133,4	M12 (6x60°)	110	67	13	37,5	17,5	5	6000
KSKF-AF 80 Z140	80	140	185	175	140	M78 x 1,5	74	104,8	M10 (3x120°)	130	87	43	39,5	17,5	5	5500
KSKF-AF 80 Z170	80	170	185	175	140	M94 x 1,5	85	133,4	M12 (6x60°)	120	77	33	32,0	17,5	5	5500
KSKF-AF 80 Z220	80	220	230	175	140	M94 x 1,5	85	171,4	M16 (6x60°)	119	76	32	31	17,5	6	5500
*unbalanced

with short taper holder, drawback collet chuck with through-hole

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	D7	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-AF 32-A4	32	A2 - 4	105	100	75,5	M40 x 1,5	33	82,6	M10 (3x120°)	100,8	65,8	50	34,5	15	14,5	8000
KSKF-AF 32-A5	32	A2 - 5	130	100	75,5	M40 x 1,5	33	104,8	M10 (3x120°)	100,8	65,8	26	34,5	15,0	16,5	8000
KSKF-AF 42-A5	42	A2 - 5	132	--	100	M54 x 1,5	46	104,8	M10 (4x90°)	105	68	-	37,0	47,0	16,5	7000
KSKF-AF 42- A6	42	A2 - 6	160	132	100	M54 x 1,6	46	133,4	M12 (4x90°)	105	68	36	37,0	17,0	7,5	7000
KSKF-AF 65-A5	65	A5 - 5	157	--	122	M78 x 1,5	68	104,8	M10 (4x90°)	112	69	-	39,5	17,5	19	6000
KSKF-AF 65-A6	65	A5 - 6	157	--	122	M78 x 1,5	68	133,4	M12 (4x90°)	110	67	-	37,5	17,5	17,5	6000
KSKF-AF 65-A8	65	A5 - 8	202	157	122	M78 x 1,5	68	171,4	M16 (4x90°)	114	71	47	41,5	17,5	20	6000
KSKF-AF 80-A6	80	A0 - 6	185	175	140	M94 x 1,5	85	133,4	M12 (4x90°)	125	82	38	37,0	17,5	17,5	5500
KSKF-AF 80-A8	80	A0 - 8	202	175	140	M94 x 1,5	85	171,4	M16 (6x60°)	130	87	43	42	17,5	20	5500
*unbalanced

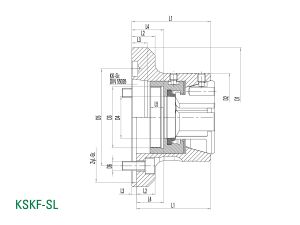

The KSKF-SL collet chuck with through-hole impress with their compact design and low weight – ideal for bar machining on the main spindle. Thanks to their significantly reduced mass and lower moment of inertia, they offer noticeably higher efficiency. The minimized interfering contours ensure better accessibility to the workpiece. In addition, sizes 42 and 52 allow speeds of up to 8,000 rpm¹. The chucks are completely sealed, extremely low-maintenance, and particularly easy to convert.

with cylindrical adapter flange, drawback collet chuck with through-hole

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-SL 42 Z140	42	140	150	95	M66 x 1,5	45	104,8	M 10 (4x90°)	70	17	19,5	15	5,0	3,4	8000
KSKF-SL 52 Z140	52	140	150	95	M66 x 1,5	55	104,8	M 10 (3x120°)	70	17	17,5	15	5,0	3,3	8000
KSKF-SL 65 Z170	65	170	180	113	M90 x 1,5	70	133,4	M12 (6x60°)	80	20	19	15	5,0	5,0	6000
*unbalanced

with flange for spindle-noses DIN 55026, drawback collet chuck with through-hole

art. no.	size	KK-Gr. Zyl-Gr.	D1	D2	D3	D4	D5	D6	L1	L2	L3	L4	L5	L6	max. speed min^-1 *
KSKF-SL 42/5	42	A2-5	130	95	M 66 x 1,5	45	104,8	M10 (4x90°)	85	20	34,5	15	16,5	3,2	8000
KSKF-SL 42/6	42	A2-6	160	95	M 66 x 1,5	45	133,4	M12 (4x90°)	85	30	34,5	15	17,5	4,8	8000
KSKF-SL 52/5	52	A2-5	130	95	M66 x 1,5	55	104,8	M10 (4x90°)	85	20	32,5	15	16,5	3,1	8000
KSKF-SL 52/6	52	A2-6	160	95	M66 x 1,5	55	133,4	M12 (4x90°)	85	30	32,5	15	17,5	4,7	8000
KSKF-SL 65/6	65	A2-6	160	113	M90 x 1,5	70	133,4	M12 (4x90°)	95	25	34	15	17,5	4,7	6000
KSKF-SL 65/8	65	A2-8	202	113	M90 x 1,5	70	171,4	M16 (4x90°)	100	35	39	15	20,0	7,8	6000
KSKF-SL 80/8	80	A2-8	202	130	M102 x 1,5	85	171,4	M16 (6x60°)	100	35	39	15	20	8,2	6000
*unbalanced
